entertainment Medium pressure UV sterilizer

Short Description:

The core working principle of medium-pressure UV equipment is to emit ultraviolet rays covering a wide wavelength range (wavelength range 200nm~400nm), especially the UVC band (200~280nm) through a special medium-pressure mercury lamp. It can emit ultraviolet rays covering a wide wavelength range, including multiple bands that have significant effects on sterilization and decomposition of organic matter.

Ultraviolet rays can destroy the DNA or RNA structure of microorganisms, making them unable to reproduce and survive, thus achieving efficient sterilization and disinfection. In addition, the energy of ultraviolet rays can also cause the molecular bonds of organic matter to break and decompose organic pollutants, such as removing humus and odor substances in water.


Product Detail

Product Tags

Features

High durability light source system

The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet light. Some devices are also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;

Reaction chamber

A properly designed reaction chamber ensures that the ultraviolet rays are evenly irradiated on the treated object, thus improving the treatment effect. The material used is usually a material with high ultraviolet transmittance and corrosion resistance, such as quartz glass.

Control System

Achieve precise control of equipment start, stop, running time, UV intensity and other parameters, automatic cleaning, easy operation and ensure stable operation of equipment;

Broad spectrum sterilization

Full-band ultraviolet rays can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, covering a wide range;

Efficient treatment of organic matter

Decompose organic pollutants in water, such as removing humus and odorous substances in water;

Quick response

Ultraviolet rays react quickly with microorganisms and organic matter, and can achieve the effects of sterilization and decomposition of organic matter in a short time;

No secondary pollution

The ultraviolet sterilization process is a physical action and will not produce secondary pollution like chemical disinfectants.

Advantages of Medium Pressure UV Pool Water Sterilization

1. Physical and green methods to efficiently kill various microorganisms in water, including Giardia and Cryptosporidium, which have strong tolerance to chlorine);

2. Efficiently decompose the "chlorine odor (chloramine)" in water to improve the swimming and working environment;

3. The equipment does not need to replace the ballast throughout its life, and the operating cost is extremely low;

4. Small footprint, perfect for existing swimming pool renovation;

5.Fully automatic cleaning, only one lamp needs to be replaced every year (5 minutes).

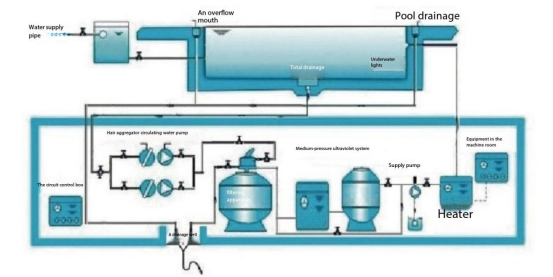

Application of medium pressure UV in swimming pool process

Photochemical effects of ultraviolet light

1.Reduce TOC concentration - medium pressure UV irradiation can decompose organic molecules in swimming pools;

2.Improve the clarity of pool water - after using the UV system, the transmittance (T10) of pool water increased from 75% to 95%;

3.Reduced THMs (Trihalomethanes) - The photochemical capacity of the UV system and the reduced amount of chlorine added after the system was introduced resulted in lower THMs concentrations in the swimming pool.

Technical Parameters

Device

Model

Disinfection

power

Power of

single lamp

Number of

lamps

caliber

Reference water

volume (m³/H)

Voltage

supply

GYZ-UUVC-1/1.0KW

1KW

1KW

1 piece

DN100

30-40

220V50Hz

GYZ-UUVC-1/2.0KW

2KW

2KW

1 piece

DN125

60-80

380V50Hz

GYZ-UUVC-1/3.0KW

3KW

3KW

1 piece

DN150

100-125

380V50Hz

GYZ-UUVC-2/2.0KW

4KW

2KW

2piece

DN200

130-150

380V50Hz

GYZ-UUVC-1/6.0KW

6KW

6KW

1 piece

DN250

200-250

380V50Hz

GYZ-UUVC-3/3.0KW

9KW

3KW

3piece

DN250

300-350

380V50Hz

GYZ-UUVC-2/6.0KW

12KW

6KW

2piece

DN300

300-350

380V50Hz

GYZ-UUVC-3/6.0KW

18KW

6KW

3piece

DN350

350-400

380V50Hz

GYZ-UUVC-4/6.0KW

24KW

6KW

4piece

DN400

400-450

380V50Hz
