Features
High durability light source system
The core is a medium-pressure mercury lamp, which has high power and wide spectrum output, and can continuously and stably emit full-band ultraviolet light. Some devices are also equipped with multiple mercury lamps to increase the intensity of ultraviolet radiation;
Reaction chamber
A properly designed reaction chamber ensures that the ultraviolet rays are evenly irradiated on the treated object, thus improving the treatment effect. The material used is usually a material with high ultraviolet transmittance and corrosion resistance, such as quartz glass.
Control System
Achieve precise control of equipment start, stop, running time, UV intensity and other parameters, automatic cleaning, easy operation and ensure stable operation of equipment;
Broad spectrum sterilization
Full-band ultraviolet rays can effectively kill a variety of bacteria, viruses, fungi, algae and other microorganisms, covering a wide range;
Efficient treatment of organic matter
Decompose organic pollutants in water, such as removing humus and odorous substances in water;
Quick response
Ultraviolet rays react quickly with microorganisms and organic matter, and can achieve the effects of sterilization and decomposition of organic matter in a short time;
No secondary pollution
The ultraviolet sterilization process is a physical action and will not produce secondary pollution like chemical disinfectants.
Advantages of Medium Pressure UV Pool Water Sterilization
1. Physical and green methods to efficiently kill various microorganisms in water, including Giardia and Cryptosporidium, which have strong tolerance to chlorine);
2. Efficiently decompose the "chlorine odor (chloramine)" in water to improve the swimming and working environment;
3. The equipment does not need to replace the ballast throughout its life, and the operating cost is extremely low;
4. Small footprint, perfect for existing swimming pool renovation;
5.Fully automatic cleaning, only one lamp needs to be replaced every year (5 minutes).

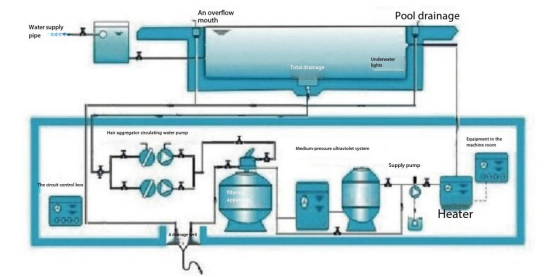

Application of medium pressure UV in swimming pool process
Photochemical effects of ultraviolet light
1.Reduce TOC concentration - medium pressure UV irradiation can decompose organic molecules in swimming pools;
2.Improve the clarity of pool water - after using the UV system, the transmittance (T10) of pool water increased from 75% to 95%;
3.Reduced THMs (Trihalomethanes) - The photochemical capacity of the UV system and the reduced amount of chlorine added after the system was introduced resulted in lower THMs concentrations in the swimming pool.
Technical Parameters
Device Model |
Disinfection power |
Power of single lamp |
Number of lamps |
caliber |
Reference water volume (m³/H) |
Voltage supply |
GYZ-UUVC-1/1.0KW |
1KW |
1KW |
1 piece |
DN100 |
30-40 |
220V50Hz |
GYZ-UUVC-1/2.0KW |
2KW |
2KW |
1 piece |
DN125 |
60-80 |
380V50Hz |
GYZ-UUVC-1/3.0KW |
3KW |
3KW |
1 piece |
DN150 |
100-125 |
380V50Hz |
GYZ-UUVC-2/2.0KW |
4KW |
2KW |
2piece |
DN200 |
130-150 |
380V50Hz |
GYZ-UUVC-1/6.0KW |
6KW |
6KW |
1 piece |
DN250 |
200-250 |
380V50Hz |
GYZ-UUVC-3/3.0KW |
9KW |
3KW |
3piece |
DN250 |
300-350 |
380V50Hz |
GYZ-UUVC-2/6.0KW |
12KW |
6KW |
2piece |
DN300 |
300-350 |
380V50Hz |
GYZ-UUVC-3/6.0KW |
18KW |
6KW |
3piece |
DN350 |
350-400 |
380V50Hz |
GYZ-UUVC-4/6.0KW |
24KW |
6KW |
4piece |
DN400 |
400-450 |
380V50Hz |
