Product Overview
The GY-WA4100 online water quality monitor ( water supply network sampling model ) is mainly used in water supply and water plants where there is a certain water pressure in the water sample pipeline waiting for measurement. The pressure range is 0.15~0.35Mpa. The online water quality monitor ( water supply network sampling model ) does not have self-priming pumps and other water intake devices inside. It contains valves, filters, pressure reducing valves, flow meters and other water control devices. The equipment consumes about 80 liters of water per hour. The monitored data are all water sample data at a slow and uniform speed , eliminating the influence of turbulence on the test results, and its values are more stable.
The equipment as a whole consists of three parts: water sample circulation system, water quality monitoring system and data acquisition and display system. It uses 220V 50Hz power supply and contains leakage protector and power switch to ensure the beauty and simplicity of the product interior.
Features
2.1. Multi- parameter integrated body, four digital sensors can monitor turbidity, residual chlorine, pH value, temperature and other parameters .
2.2, 7-inch touch screen, dynamically displays the current water quality monitoring parameters, flexible and convenient operation.
2.3. RS485 and Ethernet communication interfaces can realize remote control and data upload functions.
2.4. Users can choose the following modes according to usage: real-time measurement, hourly measurement, interval measurement, etc.
2.5. It has the function of recording and exporting measurement results, which is convenient for understanding the past water quality conditions.
2.6. It has an alarm function. When the water quality does not meet the standard, the system will automatically record the alarm record.
Equipment Installation

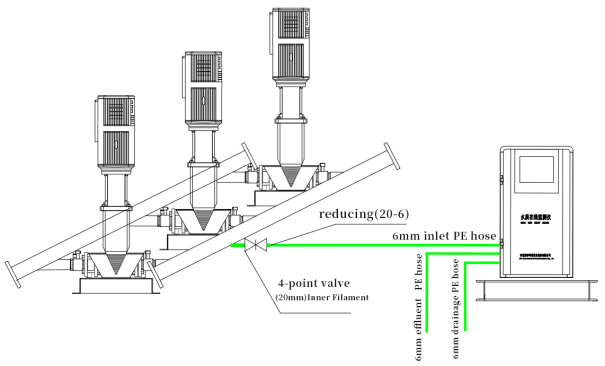

1. Water pump outlet installation

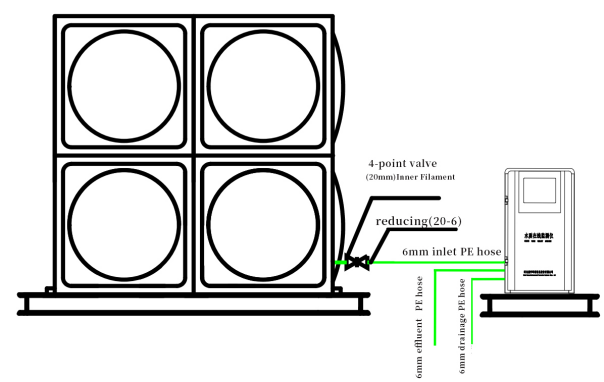

2. Water tank docking installation
Technical Parameters
|
name |
parameter |
|
Operating voltage |
220V |
|
Data upload method |
Ethernet , RS485 |
|
Screen size |
7 inch |
|
Screen type |
Touch screen configuration display |
|
Water pipe diameter |
6mm (outer diameter) |
|
Operating temperature |
0~50℃ |
|
Working environment humidity |
0~95% (no condensation) |
|
Dimensions |
500* 260 * 900mm ( with legs 950 ) |
| Monitoring elements |
Turbidity, residual chlorine, pH value, temperature |
